Remote Desktop (RDP)
Users can connect to CHPC Windows resources via remote desktop protocol (such as Beehive, beehive.chpc.utah.edu). There are different options depending on the operating system of the local machine (your desktop or laptop) from which you ar connecting. A short training video covers remote desktop connections from various operating systems. For help with connecting to CHPC resources via a Remote Desktop Connection (RDP), please contact helpdesk@chpc.utah.edu
When not on campus you must first connect via the campus Virtual Private Network (VPN) before you can use RDP.
Windows
Since RDP is a product of Microsoft, connecting over RDP is very straightforward on Windows machines. Users can search for "Remote Desktop Connection" in the start menu. An application will open and present the user with a prompt. Put the desired resource in the Computer field (ie, beehive.chpc.utah.edu) and click connect.
These steps are show below for both Windows 7 and Windows 10:
Step 1: Launching the application
There are a couple different ways to launch the RDP application.

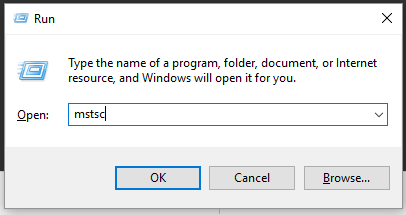

On Windows 7, you can go to Start > All Programs > Accessories > Remote Desktop Connection - OR you can run the following command (click on the Windows icon in the toolbar and select run):

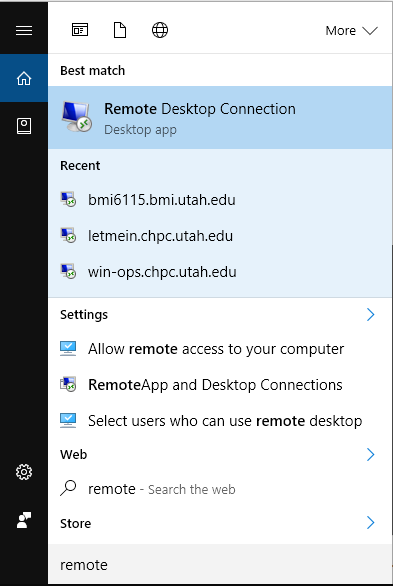

On Windows 10, you can search for the application by typing in "remote" in the "Search the web and Windows" filed on the toolbar,
as shown below
Step 2: Configuring the application

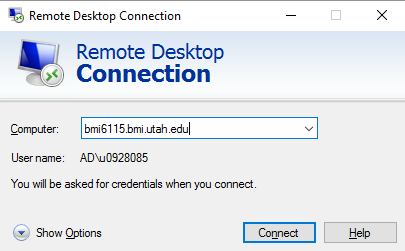

Once the application launches be sure to enter the full computer name in the Computer field. For example, enter "beehive.chpc.utah.edu" not "beehive".

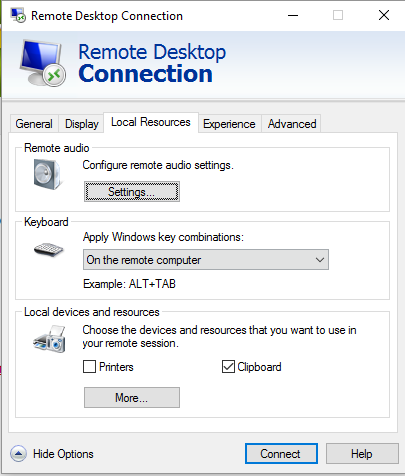

Before hitting enter or clicking "Connect" you want to click on "Show Options". Then click on the tab for "Local Resources" and click "More…"

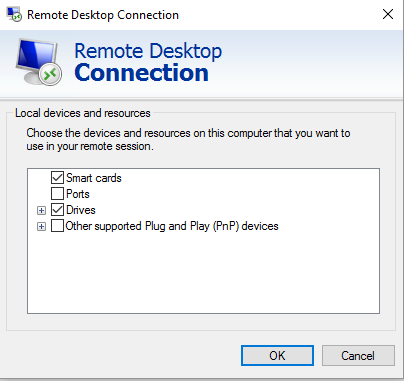

In the pop-up window you can select local drives that you would like to redirect and mount on the remote server to which you are connecting. Click "Ok" and then "Connect"
Step 3: Credentials

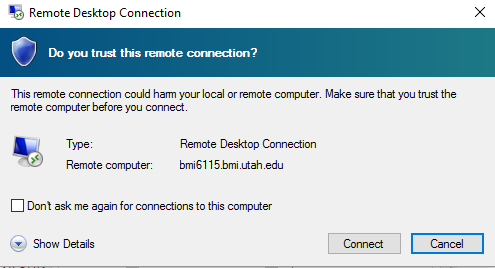

You might receive a prompt like the following, verify the remote computer name again and click "Connect"

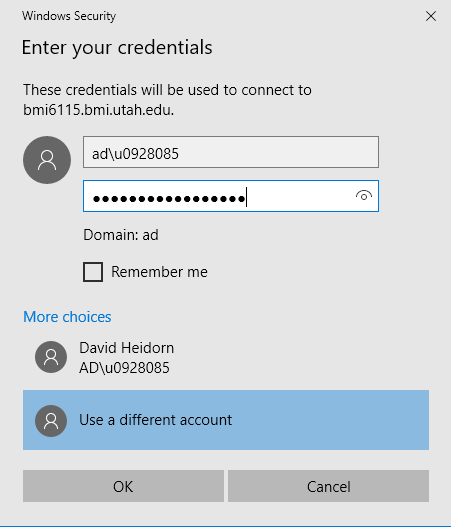

In the name field be sure to enter "ad\uNID" - replace "uNID" with your uNID and the password will be the one you use for CIS. Click "Ok".
For more information, please visit the following link: Remote Desktop Connection.
Mac
The recommended application is the official and free Microsoft Remote Desktop app, which can be found in the Mac App Store: Microsoft Remote Desktop.
Here are the steps:
Step 1: Get the application

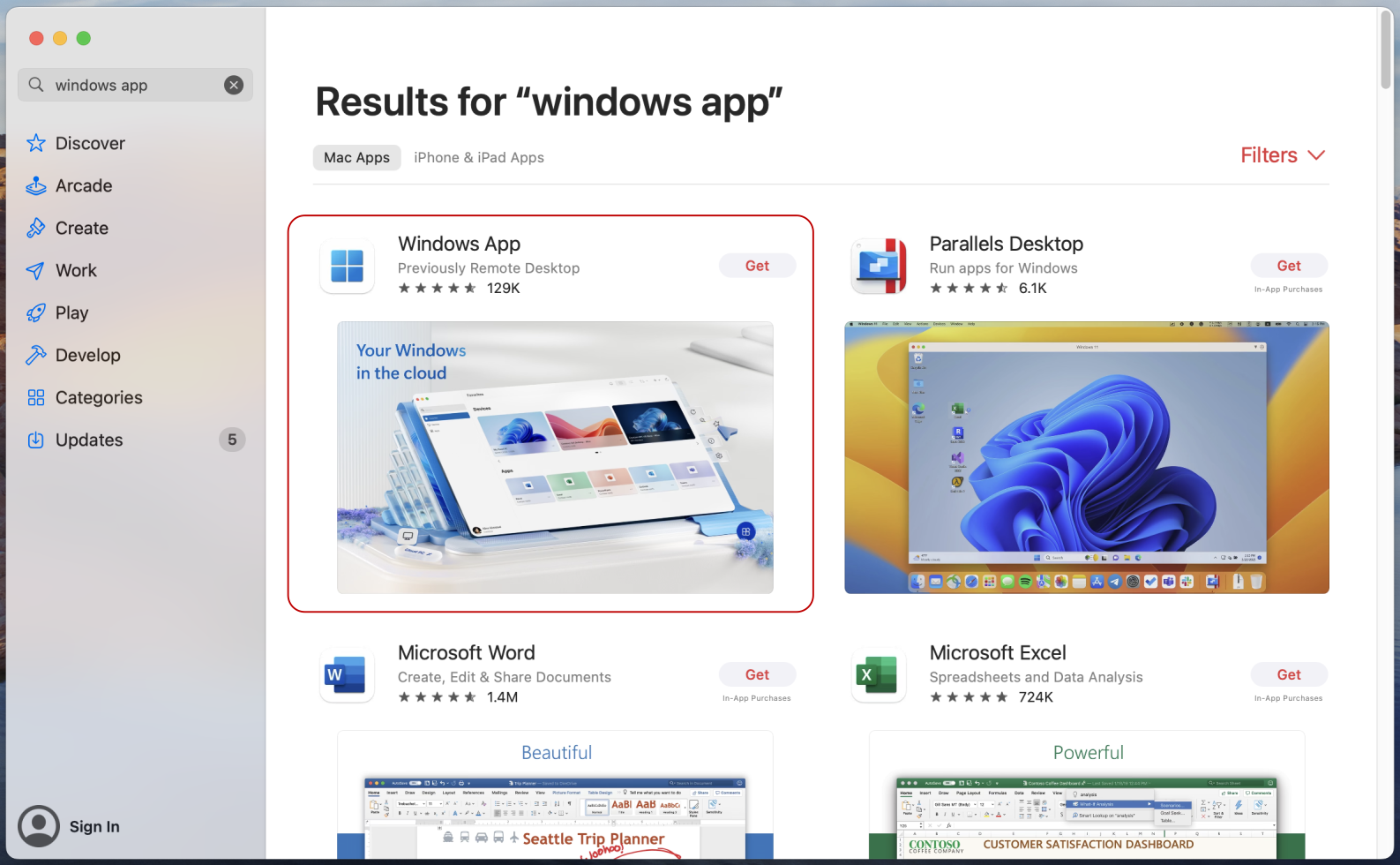

You can get the application by searching "microsoft remote desktop" as shown below; it is the first listed application with the red icon
Step 2: Configure the application
When launching the application you will first need to configure you connections by clicking on "+" icon
The following need to be filled out, the rest can be left as defaults.
PC name = use the full computer name. For example, "beehive.chpc.utah.edu" not "beehive"
Friendly name = any alias or nickname you wish to give the connection (optional)
You can redirect local folders from you mac under the "Folders" menu. (Please note this is prohibited inside of the PE)
Additionally, you may want to verify that clipboard is selected under "Devices & Audio"
Then close the menu by clicking "Add" after which you should be able to launch your newly created connection.
Your sign in will be "AD\unid" with your CIS password. (replace unid with your user account)
Linux
Linux has an application built in called "rdesktop", which can be accessed from the command line:
rdesktop beehive.chpc.utah.edu
Some useful options that users may be interested in are: -u (username), -d (domain), -a (color depth), and -g (graphics resolution). An example of these options compatible with a 1280x1024 resolution monitor is given:
rdesktop -u u0123456 -d ad -a 32 -g 1200x960 beehive.chpc.utah.edu
xfreerdp -u u0123456 -d ad.utah.edu -f beehive.chpc.utah.edu
Logging Off
When you have finished with your session (i.e. no jobs running) please logoff the server. If you still have jobs running you can disconnect from your session instead. Both options are explained below.
Disconnect
A disconnected session allows anything you have running to stay running while you close your connection to the remote server. In a practical sense this is no different than locking your physical workstation and coming back to it later, unlocking it, and having your apps where you left them.
To perform a disconnect from a remote Windows server you just need to close the connection by clicking on the "X" in the title bar, or the equivalent on a Mac.
In a fullscreen session it should look similar to this.
In a windowed session the title bar would look similar to this.
Sign Out (aka logoff)
To completely log off or sign out of a remote Windows session, there are 3 options shown below, with the first one being the easiest and most commonly used. Please be aware that this will kill all your running programs and jobs on the remote server.
In the first option you click on the Window icon in the lower left-hand corner of the screen, followed by clicking on the icon that looks like a person and then selecting "Sign out".
The second option is to perform a search on the word "logoff" and click on the result to run the logoff command.
The third option is to type "logoff" on run window (windows button on your keyboard & the letter 'r'), command prompt or powershell terminal window.
